System One aluminum ladder racks - Dimensions for Pick up Truck Ladder Racks - Contractor Rig - side view

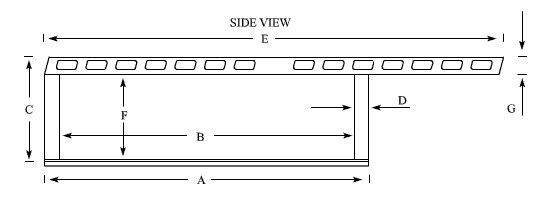

DIMENSIONS (inches) - CONTRACTOR RIG - SIDE VIEW - PICK-UP TRUCK

A
B
C
D
E
F
G
Chevy/GMC (88 & newer) S.B. Std. Cab
78.75
69.25
30.6
4.45
120
24.8
5.2
Chevy/GMC (88 & newer) S.B. Ext. Cab
78.75
69.25
30.6
4.45
138
24.8
5.2
Chevy/GMC (88 & newer) L.B. Std. Cab
97.5¹
88.25²
30.6
4.45
138
24.8
5.2
Chevy/GMC (88 & newer) L.B. Ext. Cab
97.5¹
88.25²
30.6
4.45
156
24.8
5.2
Chevy/GMC Col. & Canyon SB Crew Cab
61.5
52.25
28.7
4.45
102
22.9
5.2
Chevy/GMC Col. & Canyon L.B. Std. Cab
72.5
63.25
28.7
4.45
102
22.9
5.2
Chevy/GMC Col. & Canyon L.B. Ext. Cab
72.5
63.25
28.7
4.45
120
22.9
5.2
Chevy S-10 (94 - 03) S.B. Std. Cab
73.25
63.75
28.7
4.45
102
22.9
5.2
Chevy S-10 (94 - 03) S.B. Ext. Cab
73.25
63.75
28.7
4.45
120
22.9
5.2
Chevy S-10 (94 - 03) L.B. Std. Cab
89.5
80.0
28.7
4.45
120
22.9
5.2
Chevy S-10 short bed crew
56.0
46.5
28.7
4.45
102
22.9
5.2

Dodge (03 & up) S.B. Std. Cab
75.75
66.5
30.6
4.45
120
24.8
5.2

Dodge (03 & up) S.B. Ext. Cab
75.75
66.5
30.6
4.45
138
24.8
5.2

Dodge (03 & up) L.B. Std. Cab
97.5¹
88.25²
30.6
4.45
138
24.8
5.2

Dodge (03 & up) L.B. Ext. Cab
97.5¹
88.25²
30.6
4.45
156
24.8
5.2

Dodge (02 1500) S.B. Std. Cab
75.75
66.5
30.6
4.45
120
24.8
5.2

Dodge (02 1500) S.B. Ext. Cab
75.75
66.5
30.6
4.45
138
24.8
5.2

Dodge (02 1500) L.B. Std. Cab
97.5¹
88.25²
30.6
4.45
138
24.8
5.2

Dodge (02 1500) L.B. Ext. Cab
97.5¹
88.25²
30.6
4.45
156
24.8
5.2
Dodge (94 - 02 excl. 02 1500) S.B. Std. Cab
77.5
68.0
30.6
4.45
120
24.8
5.2
Dodge (94 - 02 excl. 02 1500) S.B. Ext. Cab
77.5
68.0
30.6
4.45
138
24.8
5.2
Dodge (94 - 02 excl. 02 1500) L.B. Std. Cab
97.5¹
88.25²
30.6
4.45
138
24.8
5.2
Dodge (94 - 02 excl. 02 1500) L.B. Ext. Cab
97.5¹
88.25²
30.6
4.45
156
24.8
5.2
Dodge Dakota S.B. Std. Cab
78.0
68.5
28.7
4.45
120
22.9
5.2
Dodge Dakota S.B. Ext. Cab
78.0
68.5
28.7
4.45
138
22.9
5.2
Dodge Dakota L.B. Std. Cab
97.0
87.5
28.7
4.45
138
22.9
5.2
Dodge Dakota short bed crew
64.0
54.5
28.7
4.45
102
22.9
5.2
Ford Super Duty (99 & up) S.B. Std. Cab
82.0
72.5
33.1
4.45
120
27.3
5.2
Ford Super Duty (99 & up) S.B. Ext. Cab
82.0
72.5
33.1
4.45
138
27.3
5.2
Ford Super Duty (99 & up) L.B. Std. Cab
97.5¹
88.25²
33.1
4.45
138
27.3
5.2
Ford Super Duty (99 & up) L.B. Ext. Cab
97.5¹
88.25²
33.1
4.45
156
27.3
5.2
Ford F150 (04 & up excl Heritage) Super Crew
67.0
57.75
30.6
4.45
102
24.8
5.2
Ford F150 (04 & up excl Heritage) 5.5'B Ext.Cab
67.0
57.75
30.6
4.45
102
24.8
5.2
Ford F150 (04 & up excl Heritage) S.B. Std. Cab
78.75
69.25
30.6
4.45
120
24.8
5.2
Ford F150 (04 & up excl Heritage) S.B. Ext. Cab
78.75
69.25
30.6
4.45
138
24.8
5.2
Ford F150 (04 & up excl Heritage) L.B. Std. Cab
97.5
88.25
30.6
4.45
138
24.8
5.2
Ford F150 (04 & up excl Heritage) L.B. Ext. Cab
97.5
88.25
30.6
4.45
156
24.8
5.2
Ford F150 04 Heritage S.B. Std. Cab
78.75
69.25
30.6
4.45
120
24.8
5.2
Ford F150 04 Heritage S.B. Ext. Cab
78.75
69.25
30.6
4.45
138
24.8
5.2
Ford F150 04 Heritage L.B. Std. Cab
97.5
88.25
30.6
4.45
138
24.8
5.2
Ford F150 04 Heritage L.B. Ext. Cab
97.5
88.25
30.6
4.45
156
24.8
5.2
Ford F150 (97 - 03) S.B. Std. Cab
78.75
69.25
30.6
4.45
120
24.8
5.2
Ford F150 (97 - 03) S.B. Ext. Cab
78.75
69.25
30.6
4.45
138
24.8
5.2
Ford F150 (97 - 03) L.B. Std. Cab
97.5
88.25
30.6
4.45
138
24.8
5.2
Ford F150 (97 - 03) L.B. Ext. Cab
97.5
88.25
30.6
4.45
156
24.8
5.2
Ford F series old body style S.B. Std. Cab
81.5
72.0
30.6
4.45
120
24.8
5.2
Ford F series old body style S.B. Ext. Cab
81.5
72.0
30.6
4.45
138
24.8
5.2
Ford F series old body style L.B. Std. Cab
97.5¹
88.25²
30.6
4.45
138
24.8
5.2
Ford F series old body style L.B. Ext. Cab
97.5¹
88.25²
30.6
4.45
156
24.8
5.2
Ford Ranger, Mazda S.B. Std. Cab
73.25
63.75
28.7
4.45
102
22.9
5.2
Ford Ranger, Mazda S.B. Ext. Cab
73.25
63.75
28.7
4.45
120
22.9
5.2
Ford Ranger, Mazda L.B. Std. Cab
54.25
76.25
28.7
4.45
120
22.9
5.2
Nissan Titan S.B. Crew Cab
67.5
58.25
30.6
4.45
120
24.8
5.2
Nissan Titan L.B. Ext. Cab
78.75
69.25
30.6
4.45
138
24.8
5.2
Nissan (97 & older) S.B. Std. Cab
73.25
63.75
28.7
4.45
102
22.9
5.2
Nissan (97 & older) S.B. Ext. Cab
73.25
63.75
28.7
4.45
120
22.9
5.2
Nissan (98 & newer) S.B. Std. Cab
74.5
65.0
28.7
4.45
102
22.9
5.2
Nissan (98 & newer) S.B. Ext.. Cab
74.5
65.0
28.7
4.45
120
22.9
5.2
Nissan Frontier Crew
56.0
46.5
28.7
4.45
102
22.9
5.2
Toyota Tacoma S.B. Std. Cab
73.25
63.75
28.7
4.45
102
22.9
5.2
Toyota Tacoma S.B. Ext. Cab
73.25
63.75
28.7
4.45
120
22.9
5.2
Toyota T-100 & Tundra S.B. Ext. Cab
75.75
66.25
30.6
4.45
138
24.8
5.2
Toyota T-100 & Tundra L.B. Std. Cab
97.5¹
88.25²
30.6
4.45
138
24.8
5.2
Note: Full size crew cab trucks and extended cab trucks use the same Extension Beam
¹ 99.5" available for use with 90.25" toolboxes.
² 90.25" available space if 99.5" Trak is used.

System One aluminum ladder racks - Dimensions for Pick up Truck Ladder Racks - Contractor Rig - end view

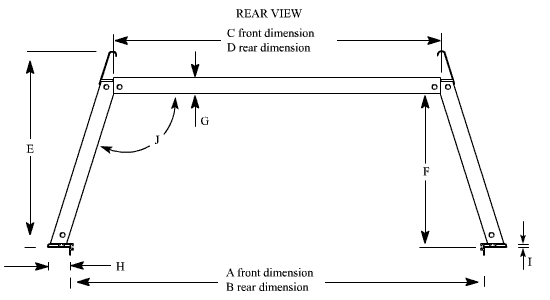

DIMENSIONS (inches) - CONTRACTOR RIG - REAR VIEW - PICK-UP TRUCK

A
B
C
D
E
F
G
H
I
J°
Chevy/GMC (88 & newer) S.B. Std. Cab
63.5
62.0
51.0
49.0
30.6
24.1
2.45
3.45
.563
107.5
Chevy/GMC (88 & newer) S.B. Ext. Cab
63.5
62.0
51.0
49.0
30.6
24.1
2.45
3.45
.563
107.5
Chevy/GMC (88 & newer) L.B. Std. Cab
63.5
62.0
51.0
49.0
30.6
24.1
2.45
3.45
.563
107.5
Chevy/GMC (88 & newer) L.B. Ext. Cab
63.5
62.0
51.0
49.0
30.6
24.1
2.45
3.45
.563
107.5
Chevy/GMC Col. & Canyon SB Crew Cab
57.0
57.0
42.25
42.25
28.7
22.2
2.45
2.15
.563
107.5
Chevy/GMC Col. & Canyon L.B. Std. Cab
57.0
57.0
42.25
42.25
28.7
22.2
2.45
2.15
.563
107.5
Chevy/GMC Col. & Canyon L.B. Ext. Cab
57.0
57.0
42.25
42.25
28.7
22.2
2.45
2.15
.563
107.5
Chevy S-10 (94 - 03) S.B. Std. Cab
56.75
55.0
42.25
40.25
28.7
22.2
2.45
2.15
.563
107.5
Chevy S-10 (94 - 03) S.B. Ext. Cab
56.75
55.0
42.25
40.25
28.7
22.2
2.45
2.15
.563
107.5
Chevy S-10 (94 - 03) L.B. Std. Cab
56.75
55.0
42.25
40.25
28.7
22.2
2.45
2.15
.563
107.5
Chevy S-10 short bed crew
56.75
55.0
42.25
40.25
28.7
22.2
2.45
2.15
.563
107.5

Dodge (03 & up) S.B. Std. Cab
65.5
62.25
51.0
49.0
 33.1
26.6
2.45
3.45
.563
107.5

Dodge (03 & up) S.B. Ext. Cab
65.5
62.25
51.0
49.0
33.1
26.6
2.45
3.45
.563
107.5

Dodge (03 & up) L.B. Std. Cab
65.5
62.25
51.0
49.0
33.1
26.6
2.45
3.45
.563
107.5

Dodge (03 & up) L.B. Ext. Cab
65.5
62.25
51.0
49.0
33.1
26.6
2.45
3.45
.563
107.5

Dodge (02 1500) S.B. Std. Cab
65.5
62.25
51.0
49.0
33.1
26.6
2.45
3.45
.563
107.5

Dodge (02 1500) S.B. Ext. Cab
65.5
62.25
51.0
49.0
33.1
26.6
2.45
3.45
.563
107.5

Dodge (02 1500) L.B. Std. Cab
65.5
62.25
51.0
49.0
33.1
26.6
2.45
3.45
.563
107.5

Dodge (02 1500) L.B. Ext. Cab
65.5
62.25
51.0
49.0
33.1
26.6
2.45
3.45
.563
107.5
Dodge (94 - 01) S.B. Ext. Cab
65.5
63.0
51.0
49.0
30.6
24.1
2.45
3.45
.563
107.5
Dodge (94 - 01) L.B. Std. Cab
65.5
63.0
51.0
49.0
30.6
24.1
2.45
3.45
.563
107.5
Dodge (94 - 01) L.B. Ext. Cab
65.5
63.0
51.0
49.0
30.6
24.1
2.45
3.45
.563
107.5
Dodge Dakota S.B. Std. Cab
57.5
57.5
42.25
42.25
28.7
22.2
2.45
2.15
.563
107.5
Dodge Dakota S.B. Ext. Cab
57.5
57.5
42.25
42.25
28.7
22.2
2.45
2.15
.563
107.5
Dodge Dakota L.B. Std. Cab
57.5
57.5
42.25
42.25
28.7
22.2
2.45
2.15
.563
107.5
Dodge Dakota short bed crew
57.5
57.5
42.25
42.25
28.7
22.2
2.45
2.15
.563
107.5
Ford Super Duty (99 & up) S.B. Std. Cab
64.75
63.5
49.0
49.0
33.1
26.6
2.45
3.45
.563
107.5
Ford Super Duty (99 & up) S.B. Ext. Cab
64.75
63.5
49.0
49.0
33.1
26.6
2.45
3.45
.563
107.5
Ford Super Duty (99 & up) L.B. Std. Cab
64.75
63.5
49.0
49.0
33.1
26.6
2.45
3.45
.563
107.5
Ford Super Duty (99 & up) L.B. Ext. Cab
64.75
63.5
49.0
49.0
33.1
26.6
2.45
3.45
.563
107.5
Ford F150 (04&up excl Her) Super Crew
62.38
62.38
49.0
49.0
28.7
24.1
2.45
3.45
.563
107.5
Ford F150 (04&up excl Her) 5.5'B Ext. Cb
62.38
62.38
49.0
49.0
28.7
24.1
2.45
3.45
.563
107.5
Ford F150 (04&up excl Her) S.B. Std. Cab
62.38
62.38
49.0
49.0
28.7
24.1
2.45
3.45
.563
107.5
Ford F150 (04&up excl Her) S.B. Ext. Cab
62.38
62.38
49.0
49.0
28.7
24.1
2.45
3.45
.563
107.5
Ford F150 (04&up excl Her) L.B. Std. Cab
62.38
62.38
49.0
49.0
28.7
24.1
2.45
3.45
.563
107.5
Ford F150 (04&up excl Her) L.B. Ext. Cab
62.38
62.38
49.0
49.0
28.7
24.1
2.45
3.45
.563
107.5
Ford F150 04 Heritage S.B. Std. Cab
62.38
62.38
49.0
49.0
30.6
24.1
2.45
3.45
.563
107.5
Ford F150 04 Heritage S.B. Ext. Cab
62.38
62.38
49.0
49.0
30.6
24.1
2.45
3.45
.563
107.5
Ford F150 04 Heritage L.B. Std. Cab
62.38
62.38
49.0
49.0
30.6
24.1
2.45
3.45
.563
107.5
Ford F150 04 Heritage L.B. Ext. Cab
62.38
62.38
49.0
49.0
30.6
24.1
2.45
3.45
.563
107.5
Ford F150 (97 - 03) S.B. Std. Cab
62.38
62.38
49.0
49.0
30.6
24.1
2.45
3.45
.563
107.5
Ford F150 (97 - 03 ) S.B. Ext. Cab
62.38
62.38
49.0
49.0
30.6
24.1
2.45
3.45
.563
107.5
Ford F150 (97 - 03) L.B. Std. Cab
62.38
62.38
49.0
49.0
30.6
24.1
2.45
3.45
.563
107.5
Ford F150 (97 - 03) L.B. Ext. Cab
62.38
62.38
49.0
49.0
30.6
24.1
2.45
3.45
.563
107.5
Ford F series old body style S.B. Std. Cab
65.0
65.0
51.0
51.0
30.6
24.1
2.45
3.45
.563
107.5
Ford F series old body style S.B. Ext. Cab
65.0
65.0
51.0
51.0
30.6
24.1
2.45
3.45
.563
107.5
Ford F series old body style L.B. Std. Cab
65.0
65.0
51.0
51.0
30.6
24.1
2.45
3.45
.563
107.5
Ford F series old body style L.B. Ext. Cab
65.0
65.0
51.0
51.0
30.6
24.1
2.45
3.45
.563
107.5
Ford Ranger, Mazda S.B. Std. Cab
54.25
54.25
40.25
40.25
28.7
22.2
2.45
2.15
.563
107.5
Ford Ranger, Mazda S.B. Ext. Cab
54.25
54.25
40.25
40.25
28.7
22.2
2.45
2.15
.563
107.5
Ford Ranger, Mazda L.B. Std. Cab
54.25
54.25
40.25
40.25
28.7
22.2
2.45
2.15
.563
107.5
Nissan Titan S.B. Crew Cab
61.25
61.25
47.5
47.5
30.6
24.1
2.45
3.45
.563
107.5
Nissan Titan L.B. Ext. Cab
61.25
61.25
47.5
47.5
30.6
24.1
2.45
3.45
.563
107.5
Nissan (97 & older) S.B. Std. Cab
54.75
54.75
40.25
40.25
28.7
22.2
2.45
2.15
.563
107.5
Nissan (97 & older) S.B. Ext. Cab
54.75
54.75
40.25
40.25
28.7
22.2
2.45
2.15
.563
107.5
Nissan (98 & newer) S.B. Std. Cab
54.75
54.75
40.25
40.25
28.7
22.2
2.45
2.15
.563
107.5
Nissan (98 & newer) S.B. Ext.. Cab
54.75
54.75
40.25
40.25
28.7
22.2
2.45
2.15
.563
107.5
Nissan Frontier Crew
54.75
54.75
40.25
40.25
28.7
22.2
2.45
2.15
.563
107.5
Toyota Tacoma S.B. Std. Cab
57.0
57.0
42.25
42.25
28.7
22.2
2.45
2.15
.563
107.5
Toyota Tacoma S.B. Ext. Cab
57.0
57.0
42.25
42.25
28.7
22.2
2.45
2.15
.563
107.5
Toyota T-100 & Tundra S.B. Ext. Cab
61.5
61.5
49.0
49.0
30.6
24.1
2.45
3.45
.563
107.5
Toyota T-100 & Tundra L.B. Std. Cab
61.5
61.5
49.0
49.0
30.6
24.1
2.45
3.45
.563
107.5

System One aluminum ladder racks - Dimensions for Pick up Truck Ladder Racks - Utility Rig - side view

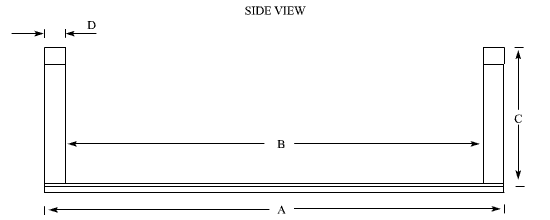

DIMENSIONS (inches) - UTILITY RIG - SIDE VIEW - PICK-UP TRUCK

A
B
C
D
Chevy/GMC (88 & newer) S.B. Std. Cab
78.75
69.25
29.5
4.45
Chevy/GMC (88 & newer) S.B. Ext. Cab
78.75
69.25
29.5
4.45
Chevy/GMC (88 & newer) L.B. Std. Cab
97.5¹
88.25²
29.5
4.45
Chevy/GMC (88 & newer) L.B. Ext. Cab
97.5¹
88.25²
29.5
4.45
Chevy/GMC Col. & Canyon SB Crew Cab
61.5
52.25
27.6
4.45
Chevy/GMC Col. & Canyon L.B. Std. Cab
72.5
63.25
27.6
4.45
Chevy/GMC Col. & Canyon L.B. Ext. Cab
72.5
63.25
27.6
4.45
Chevy S-10 (94 - 03) S.B. Std. Cab
73.25
63.75
27.6
4.45
Chevy S-10 (94 - 03) S.B. Ext. Cab
73.25
63.75
27.6
4.45
Chevy S-10 (94 - 03) L.B. Std. Cab
89.5
80.0
27.6
4.45
Chevy S-10 short bed crew
56.0
46.5
27.6
4.45

Dodge (03 & up) S.B. Std. Cab
75.75
66.5
32.0
4.45

Dodge (03 & up) S.B. Ext. Cab
75.75
66.5
32.0
4.45

Dodge (03 & up) L.B. Std. Cab
97.5¹
88.25²
32.0
4.45

Dodge (03 & up) L.B. Ext. Cab
97.5¹
88.25²
32.0
4.45

Dodge (02 1500) S.B. Std. Cab
75.75
66.5
32.0
4.45

Dodge (02 1500) S.B. Ext. Cab
75.75
66.5
32.0
4.45

Dodge (02 1500) L.B. Std. Cab
97.5¹
88.25²
32.0
4.45

Dodge (02 1500) L.B. Ext. Cab
97.5¹
88.25²
32.0
4.45
Dodge (94 - 02 excl. 02 1500) S.B. Std. Cab
77.5
68.0
29.5
4.45
Dodge (94 - 02 excl. 02 1500) S.B. Ext. Cab
77.5
68.0
29.5
4.45
Dodge (94 - 02 excl. 02 1500) L.B. Std. Cab
97.5¹
88.25²
29.5
4.45
Dodge (94 - 02 excl. 02 1500) L.B. Ext. Cab
97.5¹
88.25²
29.5
4.45
Dodge Dakota S.B. Std. Cab
78.0
68.5
27.6
4.45
Dodge Dakota S.B. Ext. Cab
78.0
68.5
27.6
4.45
Dodge Dakota L.B. Std. Cab
97.0
87.5
27.6
4.45
Dodge Dakota short bed crew
64.0
54.5
27.6
4.45
Ford Super Duty (99 & up) S.B. Std. Cab
82.0
72.5
32.0
4.45
Ford Super Duty (99 & up) S.B. Ext. Cab
82.0
72.5
32.0
4.45
Ford Super Duty (99 & up) L.B. Std. Cab
97.5¹
88.25²
32.0
4.45
Ford Super Duty (99 & up) L.B. Ext. Cab
97.5¹
88.25²
32.0
4.45
Ford F150 (04 & up excl Heritage) Super Crew
67.0
57.75
27.6
4.45
Ford F150 (04 & up excl Heritage) 5.5'B Ext.Cab
67.0
57.75
27.6
4.45
Ford F150 (04 & up excl Heritage) S.B. Std. Cab
78.75
69.25
27.6
4.45
Ford F150 (04 & up excl Heritage) S.B. Ext. Cab
78.75
69.25
27.6
4.45
Ford F150 (04 & up excl Heritage) L.B. Std. Cab
97.5
88.25
27.6
4.45
Ford F150 (04 & up excl Heritage) L.B. Ext. Cab
97.5
88.25
27.6
4.45
Ford F150 04 Heritage S.B. Std. Cab
78.75
69.25
29.5
4.45
Ford F150 04 Heritage S.B. Ext. Cab
78.75
69.25
29.5
4.45
Ford F150 04 Heritage L.B. Std. Cab
97.5
88.25
29.5
4.45
Ford F150 04 Heritage L.B. Ext. Cab
97.5
88.25
29.5
4.45
Ford F150 (97 - 03) S.B. Std. Cab
78.75
69.25
29.5
4.45
Ford F150 (97 - 03) S.B. Ext. Cab
78.75
69.25
29.5
4.45
Ford F150 (97 - 03) L.B. Std. Cab
97.5
88.25
29.5
4.45
Ford F150 (97 - 03) L.B. Ext. Cab
97.5
88.25
29.5
4.45
Ford F series old body style S.B. Std. Cab
81.5
72.0
29.5
4.45
Ford F series old body style S.B. Ext. Cab
81.5
72.0
29.5
4.45
Ford F series old body style L.B. Std. Cab
97.5¹
88.25²
29.5
4.45
Ford F series old body style L.B. Ext. Cab
97.5¹
88.25²
29.5
4.45
Ford Ranger, Mazda S.B. Std. Cab
73.25
63.75
27.6
4.45
Ford Ranger, Mazda S.B. Ext. Cab
73.25
63.75
27.6
4.45
Ford Ranger, Mazda L.B. Std. Cab
54.25
76.25
27.6
4.45
Nissan Titan S.B. Crew Cab
67.5
58.25
29.5
4.45
Nissan Titan L.B. Ext. Cab
78.75
69.25
29.5
4.45
Nissan (97 & older) S.B. Std. Cab
73.25
63.75
27.6
4.45
Nissan (97 & older) S.B. Ext. Cab
73.25
63.75
27.6
4.45
Nissan (98 & newer) S.B. Std. Cab
74.5
65.0
27.6
4.45
Nissan (98 & newer) S.B. Ext.. Cab
74.5
65.0
27.6
4.45
Nissan Frontier Crew
56.0
46.5
27.6
4.45
Toyota Tacoma S.B. Std. Cab
73.25
63.75
27.6
4.45
Toyota Tacoma S.B. Ext. Cab
73.25
63.75
27.6
4.45
Toyota T-100 & Tundra S.B. Ext. Cab
75.75
66.5
29.5
4.45
Toyota T-100 & Tundra L.B. Std. Cab
97.5¹
88.25²
29.5
4.45

¹ 99.5" available for use with 90.25" toolboxes.
² 90.25" available space if 99.5" Trak is used.

System One aluminum ladder racks - Dimensions for Pick up Truck Ladder Racks - Utility Rig - end view

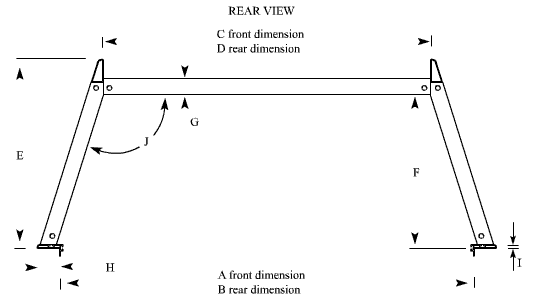

DIMENSIONS (inches) - UTILITY RIG - REAR VIEW - PICK-UP TRUCK

A
B
C
D
E
F
G
H
I
J°
Chevy/GMC (88 & newer) S.B. Std. Cab
63.5
62.0
51.0
49.0
29.5
24.1
2.45
3.45
.563
107.5
Chevy/GMC (88 & newer) S.B. Ext. Cab
63.5
62.0
51.0
49.0
29.5
24.1
2.45
3.45
.563
107.5
Chevy/GMC (88 & newer) L.B. Std. Cab
63.5
62.0
51.0
49.0
29.5
24.1
2.45
3.45
.563
107.5
Chevy/GMC (88 & newer) L.B. Ext. Cab
63.5
62.0
51.0
49.0
29.5
24.1
2.45
3.45
.563
107.5
Chevy/GMC Col. & Canyon SB Crew Cab
57.0
57.0
42.25
42.25
27.6
22.2
2.45
2.15
.563
107.5
Chevy/GMC Col. & Canyon L.B. Std. Cab
57.0
57.0
42.25
42.25
27.6
22.2
2.45
2.15
.563
107.5
Chevy/GMC Col. & Canyon L.B. Ext. Cab
57.0
57.0
42.25
42.25
27.6
22.2
2.45
2.15
.563
107.5
Chevy S-10 (94 - 03) S.B. Std. Cab
56.75
55.0
42.25
40.25
27.6
22.2
2.45
2.15
.563
107.5
Chevy S-10 (94 - 03) S.B. Ext. Cab
56.75
55.0
42.25
40.25
27.6
22.2
2.45
2.15
.563
107.5
Chevy S-10 (94 - 03) L.B. Std. Cab
56.75
55.0
42.25
40.25
27.6
22.2
2.45
2.15
.563
107.5
Chevy S-10 short bed crew
56.75
55.0
42.25
40.25
27.6
22.2
2.45
2.15
.563
107.5

Dodge (03 & up) S.B. Std. Cab
65.5
62.5
51.0
49.0
32.0
26.6
2.45
3.45
.563
107.5

Dodge (03 & up) S.B. Ext. Cab
65.5
62.5
51.0
49.0
32.0
26.6
2.45
3.45
.563
107.5

Dodge (03 & up) L.B. Std. Cab
65.5
62.5
51.0
49.0
32.0
26.6
2.45
3.45
.563
107.5

Dodge (03 & up) L.B. Ext. Cab
65.5
62.5
51.0
49.0
32.0
26.6
2.45
3.45
.563
107.5

Dodge (02 1500) S.B. Std. Cab
65.5
62.5
51.0
49.0
32.0
26.6
2.45
3.45
.563
107.5

Dodge (02 1500) S.B. Ext. Cab
65.5
62.5
51.0
49.0
32.0
26.6
2.45
3.45
.563
107.5

Dodge (02 1500) L.B. Std. Cab
65.5
62.5
51.0
49.0
32.0
26.6
2.45
3.45
.563
107.5

Dodge (02 1500) L.B. Ext. Cab
65.5
62.5
51.0
49.0
32.0
26.6
2.45
3.45
.563
107.5
Dodge (94 - 02 excl. 1500) S.B. Std. Cab
65.5
63.0
51.0
49.0
29.5
24.1
2.45
3.45
.563
107.5
Dodge (94 - 02 excl. 1500) S.B. Ext. Cab
65.5
63.0
51.0
49.0
29.5
24.1
2.45
3.45
.563
107.5
Dodge (94 - 02 excl. 1500) L.B. Std. Cab
65.5
63.0
51.0
49.0
29.5
24.1
2.45
3.45
.563
107.5
Dodge (94 - 02 excl. 1500) L.B. Ext. Cab
65.5
63.0
51.0
49.0
29.5
24.1
2.45
3.45
.563
107.5
Dodge Dakota S.B. Std. Cab
57.5
57.5
42.25
42.25
27.6
22.2
2.45
3.45
.563
107.5
Dodge Dakota S.B. Ext. Cab
57.5
57.5
42.25
42.25
27.6
22.2
2.45
3.45
.563
107.5
Dodge Dakota L.B. Std. Cab
57.5
57.5
42.25
42.25
27.6
22.2
2.45
3.45
.563
107.5
Dodge Dakota short bed crew
57.5
57.5
42.25
42.25
27.6
22.2
2.45
3.45
.563
107.5
Ford Super Duty (99 & up) S.B. Std. Cab
64.75
63.5
49.0
49.0
32.0
26.6
2.45
3.45
.563
107.5
Ford Super Duty (99 & up) S.B. Ext. Cab
64.75
63.5
49.0
49.0
32.0
26.6
2.45
3.45
.563
107.5
Ford Super Duty (99 & up) L.B. Std. Cab
64.75
63.5
49.0
49.0
32.0
26.6
2.45
3.45
.563
107.5
Ford Super Duty (99 & up) L.B. Ext. Cab
64.75
63.5
49.0
49.0
32.0
26.6
2.45
3.45
.563
107.5
Ford F150 (04 & up excl Heritage) Super Crew
62.5
62.5
49.0
49.0
27.6
22.2
2.45
3.45
.563
107.5
Ford F150 (04 & up excl Heritage) 5.5'B Ext.Cab
62.375
62.375
49.0
49.0
27.6
22.2
2.45
3.45
.563
107.5
Ford F150 (04&up excl Heritage) SB. Std. Cab
62.375
62.375
49.0
49.0
27.6
22.2
2.45
3.45
.563
107.5
Ford F150 (04&up excl Heritage) S.B. Ext. Cab
62.375
62.375
49.0
49.0
27.6
22.2
2.45
3.45
.563
107.5
Ford F150 (04&up excl Heritage) L.B. Std. Cab
62.375
62.375
49.0
49.0
27.6
22.2
2.45
3.45
.563
107.5
Ford F150 (04&up excl Heritage) L.B. Ext. Cab
62.375
62.375
49.0
49.0
27.6
22.2
2.45
3.45
.563
107.5
Ford F150 (97 - 03) S.B. Std. Cab
62.38
62.38
49.0
49.0
29.5
24.1
2.45
3.45
.563
107.5
Ford F150 (97 - 03 ) S.B. Ext. Cab
62.38
62.38
49.0
49.0
29.5
24.1
2.45
3.45
.563
107.5
Ford F150 (97 - 03) L.B. Std. Cab
62.38
62.38
49.0
49.0
29.5
24.1
2.45
3.45
.563
107.5
Ford F150 (97 - 03) L.B. Ext. Cab
62.38
62.38
49.0
49.0
29.5
24.1
2.45
3.45
.563
107.5
Ford F series old body style S.B. Std. Cab
65.0
65.0
51.0
51.0
29.5
24.1
2.45
3.45
.563
107.5
Ford F series old body style S.B. Ext. Cab
65.0
65.0
51.0
51.0
29.5
24.1
2.45
3.45
.563
107.5
Ford F series old body style L.B. Std. Cab
65.0
65.0
51.0
51.0
29.5
24.1
2.45
3.45
.563
107.5
Ford F series old body style L.B. Ext. Cab
65.0
65.0
51.0
51.0
29.5
24.1
2.45
3.45
.563
107.5
Ford Ranger, Mazda S.B. Std. Cab
54.25
54.25
40.25
40.25
27.6
22.2
2.45
3.45
.563
107.5
Ford Ranger, Mazda S.B. Ext. Cab
54.25
54.25
40.25
40.25
27.6
22.2
2.45
3.45
.563
107.5
Ford Ranger, Mazda L.B. Std. Cab
54.25
54.25
40.25
40.25
27.6
22.2
2.45
3.45
.563
107.5
Nissan Titan S.B. Crew Cab
61.375
61.375
47.5
47.5
29.5
24.1
2.45
3.45
.563
107.5
Nissan Titan L.B. Ext. Cab
61.375
61.375
47.5
47.5
29.5
24.1
2.45
3.45
.563
107.5
Nissan (97 & older) S.B. Std. Cab
54.75
54.75
40.25
40.25
27.6
22.2
2.45
3.45
.563
107.5
Nissan (97 & older) S.B. Ext. Cab
54.75
54.75
40.25
40.25
27.6
22.2
2.45
3.45
.563
107.5
Nissan (98 & newer) S.B. Std. Cab
54.75
54.75
40.25
40.25
27.6
22.2
2.45
3.45
.563
107.5
Nissan (98 & newer) S.B. Ext.. Cab
54.75
54.75
40.25
40.25
27.6
22.2
2.45
3.45
.563
107.5
Nissan Frontier Crew
54.75
54.75
40.25
40.25
27.6
22.2
2.45
3.45
.563
107.5
Toyota Tacoma S.B. Std. Cab
57.0
57.0
42.25
42.25
27.6
22.2
2.45
3.45
.563
107.5
Toyota Tacoma S.B. Ext. Cab
57.0
57.0
42.25
42.25
27.6
22.2
2.45
3.45
.563
107.5
Toyota T-100 & Tundra S.B. Ext. Cab
61.5
61.5
49.0
49.0
29.5
24.1
2.45
3.45
.563
107.5
Toyota T-100 & Tundra L.B. Std. Cab
61.5
61.5
49.0
49.0
29.5
24.1
2.45
3.45
.563
107.5
